Home /Products/Cylinder Block Head/515R DAM15R Engine 1.5 Liter 82kW DOHC 16 Valve For Light Commercial Vehicles

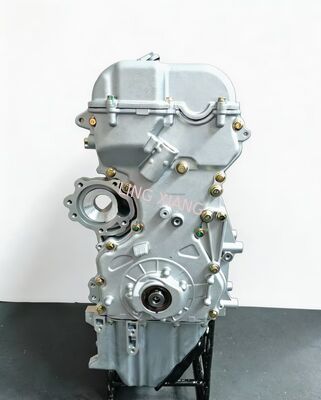

515R DAM15R Engine 1.5 Liter 82kW DOHC 16 Valve For Light Commercial Vehicles

10
MOQ
3200/ units
Price
515R DAM15R Engine 1.5 Liter 82kW DOHC 16 Valve For Light Commercial Vehicles
Features Gallery Product Description Chat Now
Features
Specifications
Cylinder Block: Iron Casting
CYLINDER BLOCK: LRON OR ALUMINUM
CYLINDER HEAD: ALUMINUM OR PLASTIC
Compressionratio: 10.5:1
Transmissioncompatibility: 6-Speed Automatic
Coolingsystem: Liquid Cooled
Aspiration: Naturally Aspirated
Numberofcylinders: 6
Engineblockmaterial: Aluminum
Enginetype: V6
Valvetrain: DOHC
Emissionstandard: Euro 6
Ignitionsystem: Electronic
Fuelinjection: Direct Injection
Fueltype: Gasoline
Horsepower: 280 HP
Torque: 260 Lb-ft
Highlight:

DAM15R Engine

,

515R Engine 1.5 Liter

,

16 Valve DOHC Engine
Basic Infomation
Place of Origin: CHONGQING
Brand Name: LINXIANG,WULING
Certification: ISO
Model Number: 515R
Payment & Shipping Terms
Packaging Details: export packaging
Delivery Time: 10DAY
Payment Terms: D/A,L/C,D/P,T/T,Western Union
Product Description
515R Engine (DAM15R)
The 515R engine, also known as DAM15R, is a 1.5-liter inline four-cylinder naturally aspirated gasoline engine produced by Harbin Dongan Power. It is primarily used in light commercial vehicles such as micro-trucks, micro-vans, and light-duty trucks from brands like Wuling, Changan, and Foton.
Core Specifications
Model 515R (DAM15R)
Configuration In-line 4-cylinder, 4-stroke, water-cooled, naturally aspirated
Displacement 1.5L (1488cc)
Valvetrain DOHC (Dual Overhead Camshaft), 16 valves
Bore * Stroke 72mm * 91.5mm
Compression Ratio 10.5:1
Max Power 82kW (112hp) @ 6000rpm
Max Torque 142N·m @ 3000–4500rpm
Firing Order 1-3-4-2
Block Material Cast iron
Head Material Aluminum alloy
Fuel System Multi-point electronic fuel injection (EFI)
Emission Standard China IV/V, with Euro V potential
Key Features
  • High Reliability: Features a robust cast-iron block and aluminum-alloy head, delivering durable performance and low maintenance costs, ideal for heavy-duty commercial use.
  • Efficient Performance: The DOHC 16-valve valvetrain, paired with optimized intake/exhaust design, generates strong low-end torque for excellent starting and climbing capabilities.
  • Fuel Economy: Optimized combustion systems and electronic control technologies deliver good fuel efficiency, reducing operational costs for users.
  • Broad Compatibility: As a proven powertrain, it is widely adapted to mainstream models like the Wuling Rongguang New Truck, Changan Star Truck, and Foton Xiangling.
This engine is engineered for demanding commercial applications, offering a balance of power, reliability, and efficiency for light commercial vehicle operations.
