How Are Engines Assembled? The Complete Step-by-Step Engine Assembly Process from Block to Dyno

Engine assembly is the meticulous, sequential process of joining precision-machined internal and external components to form a functional internal combustion engine. It follows a systematic bottom-up build methodology — starting with the bare engine block, installing the rotating assembly, fitting the cylinder head, and attaching all external accessories. Every step demands exacting tolerances, proper lubrication, and correct torque values to ensure long-term reliability.

1. Engine Block Preparation

Before any assembly begins, the bare engine block undergoes thorough preparation. Technicians clean oil galleries, deburr surfaces, and inspect for cracks or warpage. Cylinder bores are measured and honed for proper ring seating, and the deck surface is verified flat within OEM tolerance.

2. The Rotating Assembly (The Bottom End)

The bottom end forms the engine's rotational core — the foundation upon which everything else is built. This stage involves two critical sub-assemblies:

Crankshaft and Bearings

Precision main bearings are placed into the block saddles and generously coated with assembly lubricant. The crankshaft is carefully lowered into position, and the main bearing caps are installed. Using a calibrated torque wrench, technicians tighten each cap bolt in the specified sequence and stages — typically a two or three-step torque pattern. A final rotational check confirms the crankshaft spins freely with no binding.

Pistons and Connecting Rods

Piston rings are checked for end-gap using feeler gauges, then installed with gaps staggered at 120-degree intervals. Using a ring compressor, each piston and rod assembly slides into its cylinder. The rod big end attaches to the crankshaft journal, and cap bolts are torqued to specification — Plastigauge verifies bearing clearance during this step.

3. The Top End (Cylinder Head and Valvetrain)

With the rotating assembly complete, the cylinder head is prepared to seal the combustion chambers:

Camshaft Installation

The camshaft is inserted into the block or cylinder head depending on engine architecture. For overhead cam (OHC) designs, the camshafts are installed directly on the cylinder head using bearing caps torqued to specification. For pushrod engines, the camshaft rides in the block with lifters positioned in the lifter bores. In either case, assembly lubricant is applied generously to all cam lobes and bearing journals.

Cylinder Head Mounting

A high-quality multi-layer steel (MLS) head gasket is placed onto the block deck — never reuse an old gasket. The gasket's orientation is critical: coolant and oil passages must align perfectly. The cylinder head is lowered onto the locating dowels, and head bolts or studs are installed. Torque is applied in a precise crisscross sequence, typically in three stages, to distribute clamping force evenly and prevent warping. Torque-to-yield (TTY) bolts require an additional angle-tightening step beyond the final torque value.

Valvetrain Assembly

Pushrods are inserted through the cylinder head (on pushrod engines), rocker arms are positioned on their fulcrums, and valve lash is adjusted to specification using feeler gauges. On OHC engines, hydraulic lash adjusters or bucket tappets sit between the cam lobe and valve stem, automatically maintaining proper clearance. All contact points receive assembly paste before the valve cover is sealed and installed.

4. Timing System and Covers

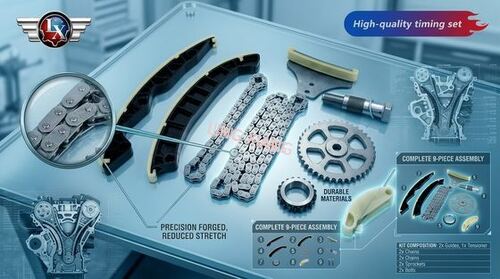

Timing alignment is one of the most critical precision operations in engine assembly. The crankshaft and camshaft timing marks must be perfectly aligned — off by even one tooth and the engine may run poorly, lose power, or suffer valve-to-piston contact. The timing chain or belt is installed along with tensioners, guides, and idler sprockets. Front and rear main seals are driven into their housings, and the timing cover and oil pan are installed using fresh gaskets and anaerobic sealant where specified.

5. Final Dressing and Testing

With the engine mechanically complete, external components are fitted: intake manifold, exhaust manifold, water pump, alternator, starter motor, fuel injectors, ignition coils, and all sensors (camshaft position, crankshaft position, knock, oil pressure). Wiring harnesses are routed and secured. Before installation in a vehicle, the engine undergoes quality assurance testing — manual rotation to check for binding, followed by a dynamometer run to verify compression across all cylinders, oil pressure at idle and under load, coolant system integrity, and power output against factory specifications.

Professional Assembly vs. DIY: Why Precision Matters

Conclusion: A professionally assembled engine, built to OEM specifications with proper tools and quality control, is the difference between long-term reliability and premature catastrophic failure. Sourcing from certified manufacturers ensures every unit meets these standards before reaching the installation bay.
