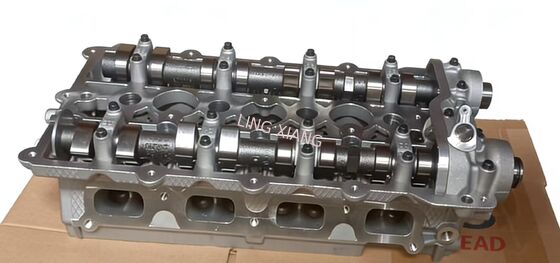

JL486ZQ5 Cast Aluminum Alloy Engine Head Assembly With Dual VVT Integrated Exhaust Manifold

10
MOQ
1700/ units
Price
JL486ZQ5 Cast Aluminum Alloy Engine Head Assembly With Dual VVT Integrated Exhaust Manifold
Features Gallery Product Description Chat Now
Features
Specifications
Cylinder Cover: Alufer
Camshaft: Alloy Cast Iron
CYLINDER BLOCK: LRON OR ALUMINUM
CYLINDER HEAD: ALUMINUM OR PLASTIC
Compressionratio: 10.5:1
Transmissioncompatibility: 6-Speed Automatic
Coolingsystem: Liquid Cooled
Aspiration: Naturally Aspirated
Numberofcylinders: 6
Engineblockmaterial: Aluminum
Enginetype: V6
Valvetrain: DOHC
Emissionstandard: Euro 6
Ignitionsystem: Electronic
Fuelinjection: Direct Injection
Fueltype: Gasoline
Horsepower: 280 HP
Torque: 260 Lb-ft
Highlight:

JL486ZQ5 Engine Head Assembly

,

Dual VVT Engine Head Assembly

,

Integrated exhaust manifold cylinder head
Basic Infomation
Place of Origin: CHONGQING
Brand Name: LINXIANG,WULING
Certification: ISO
Model Number: JL486ZQ5
Payment & Shipping Terms
Packaging Details: export packaging
Delivery Time: 10DAY
Product Description

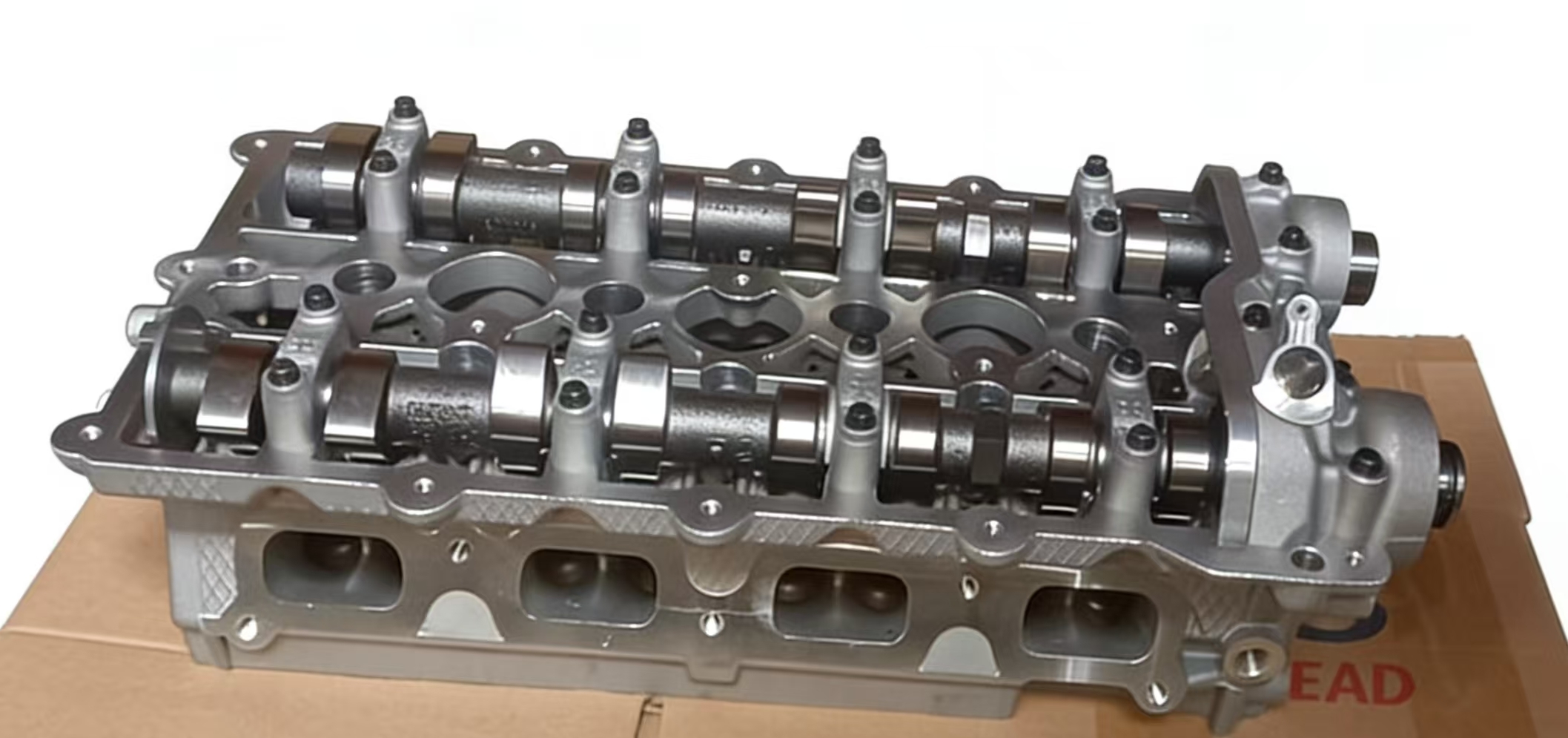

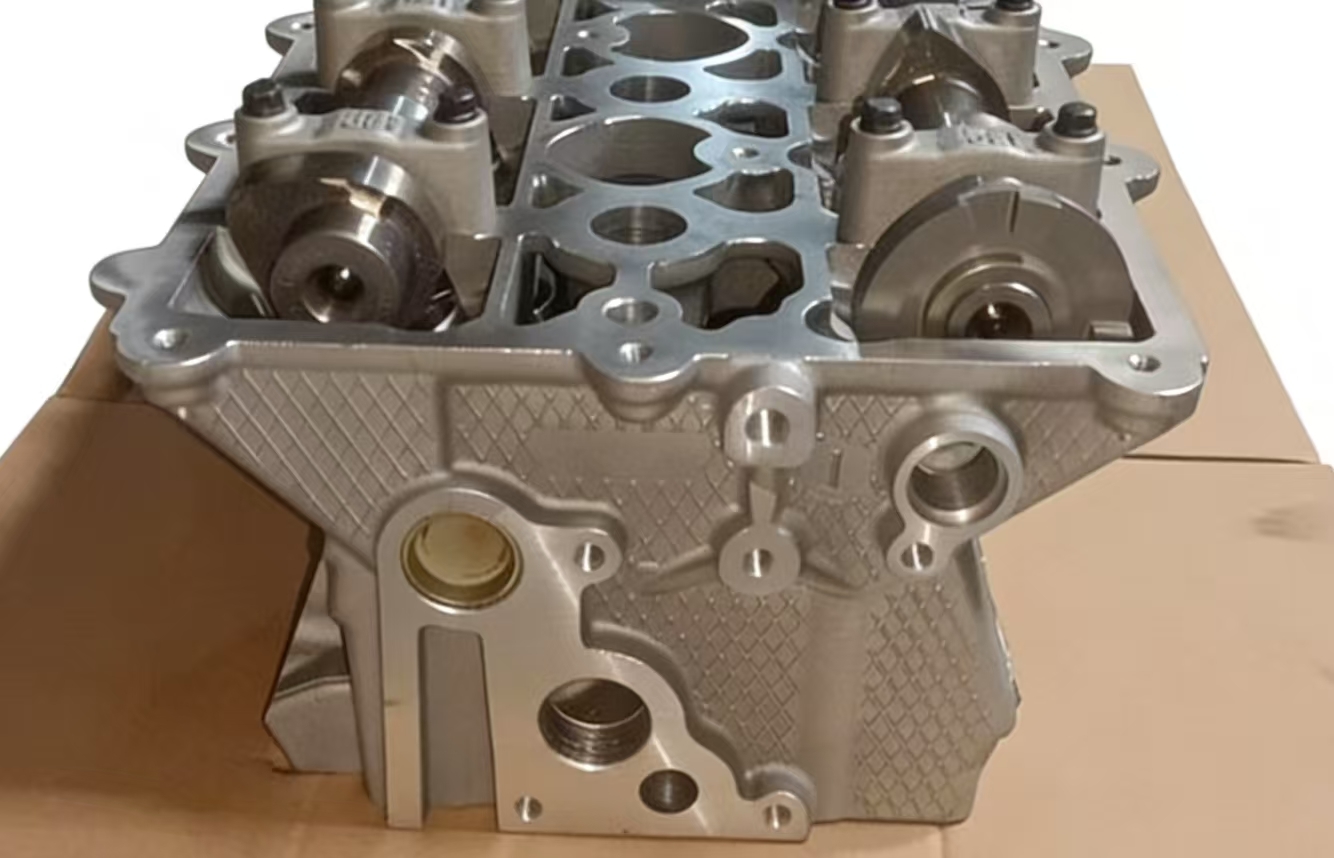

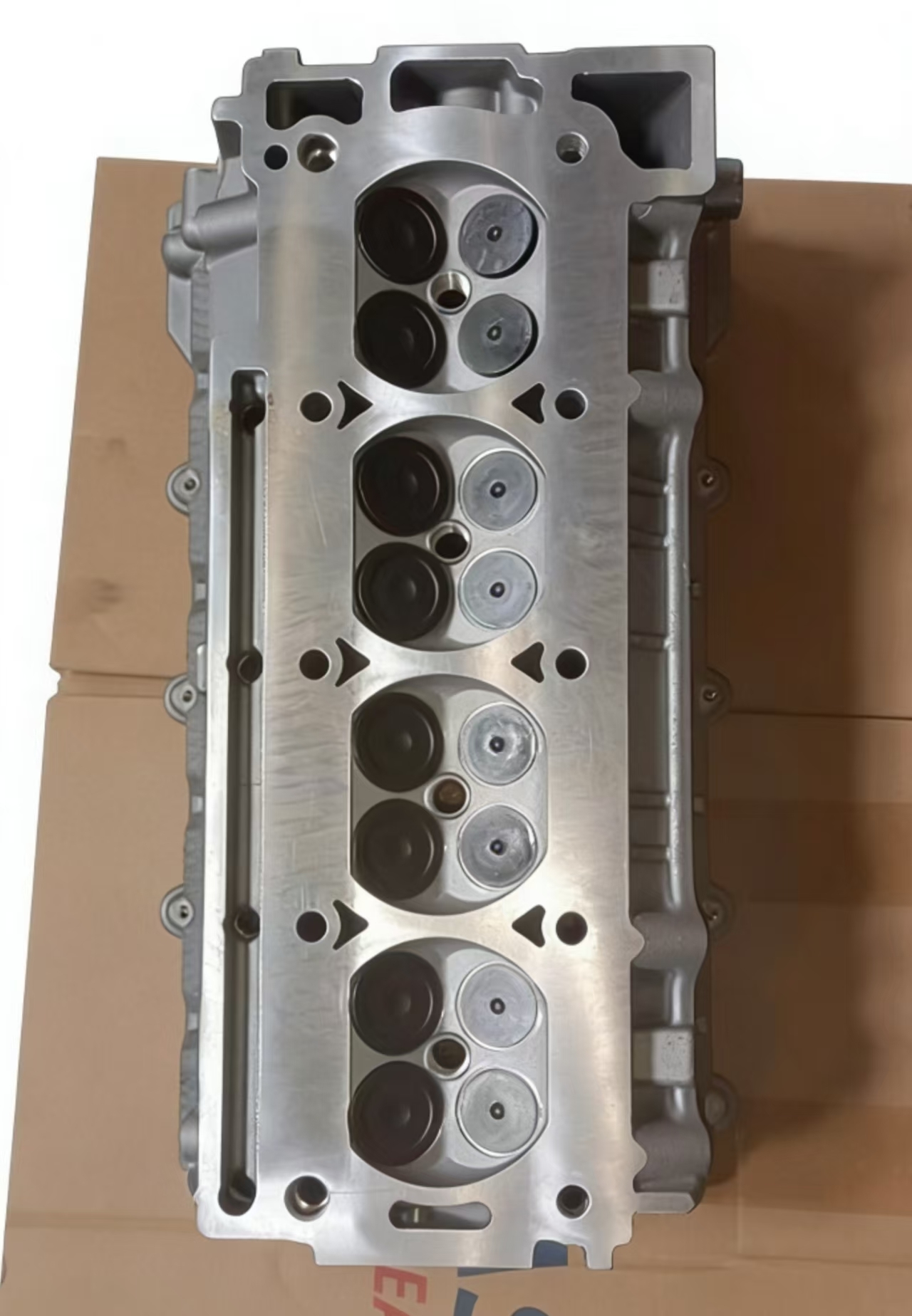

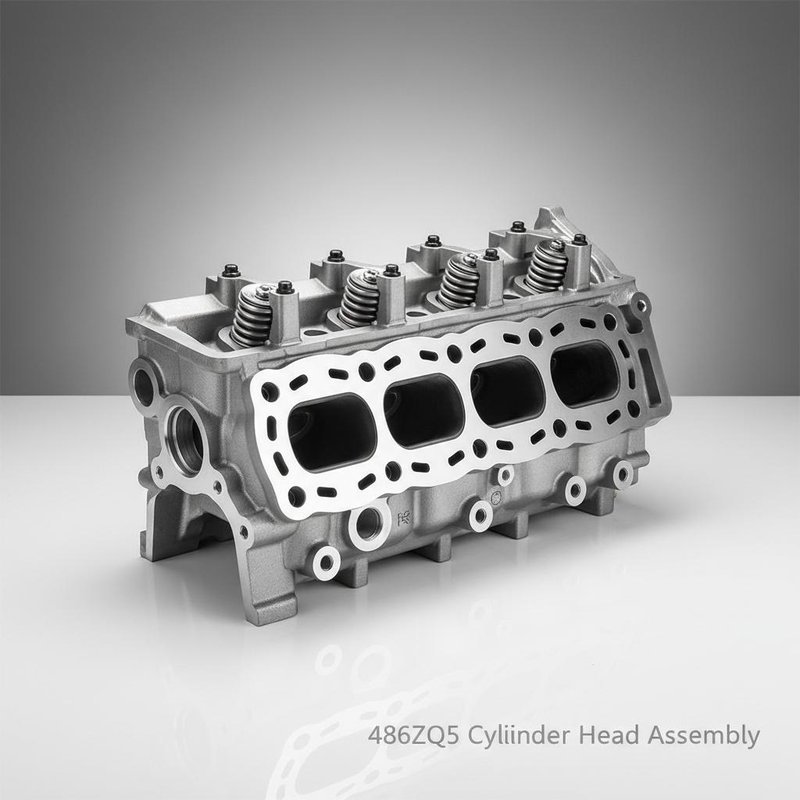

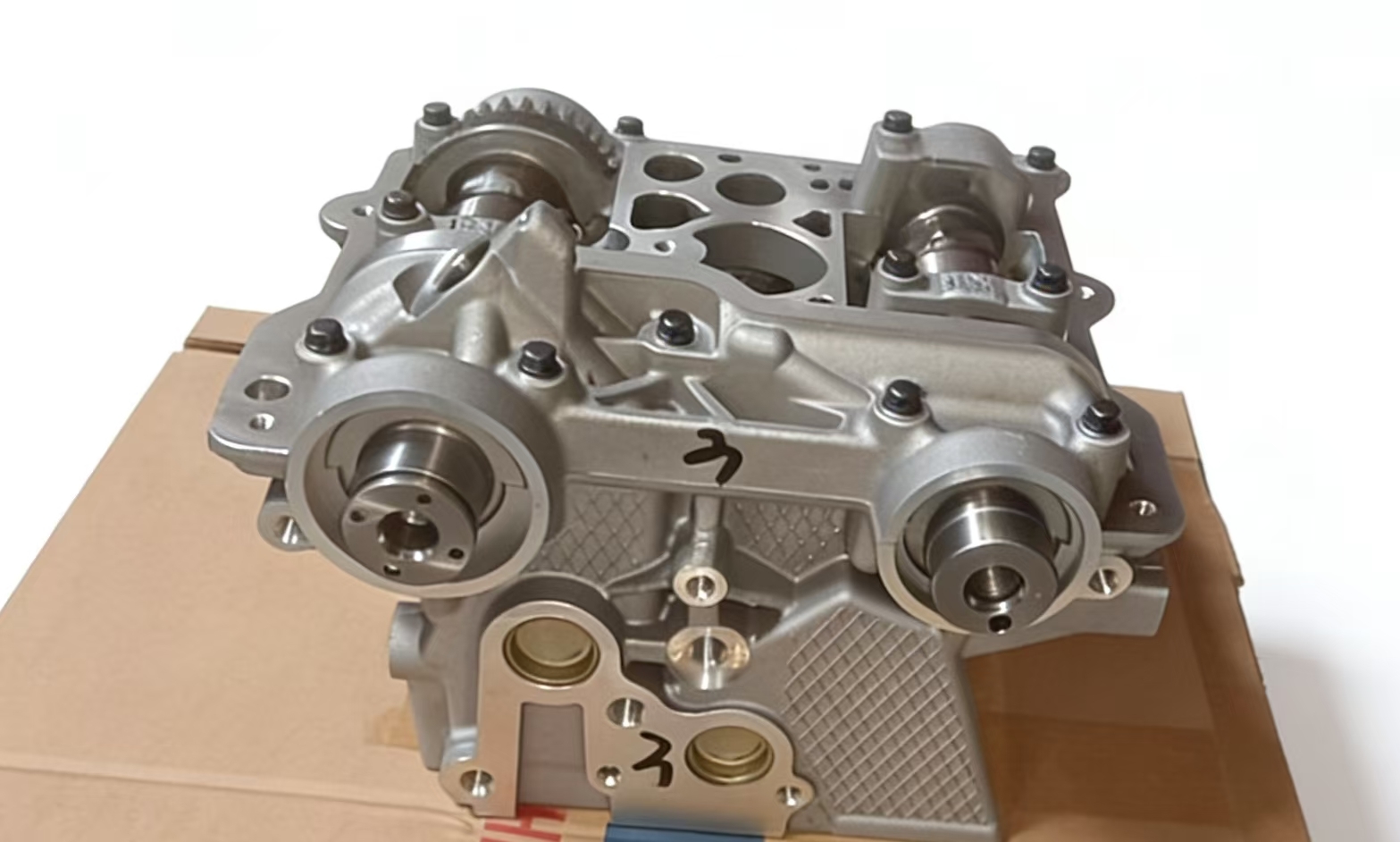

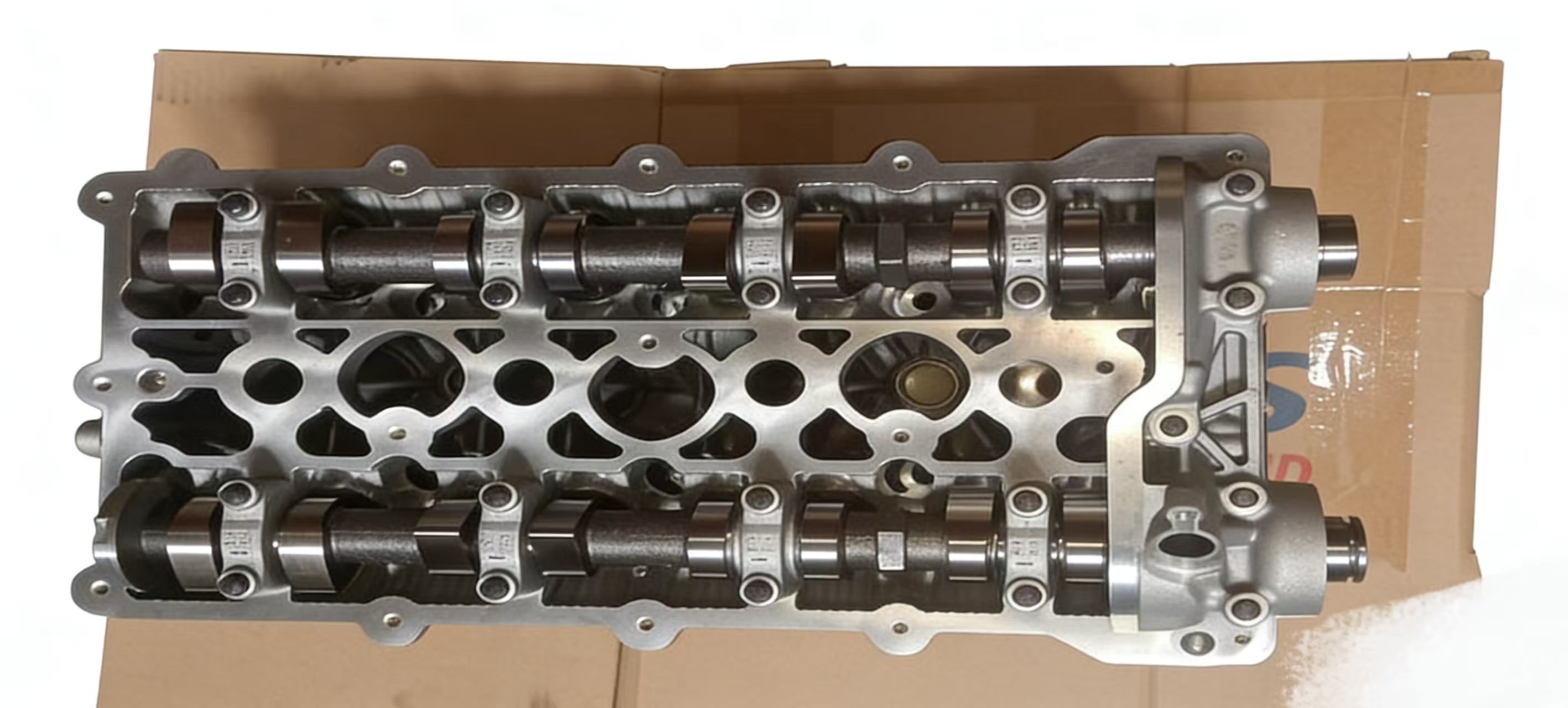

486ZQ5 Cylinder Head Assembly
Complete cylinder head assembly for JL486ZQ5 BlueCore 2.0L turbocharged gasoline engine, featuring integrated exhaust manifold and advanced valvetrain technology.
Engine Specifications
Engine Application
JL486ZQ5 BlueCore 2.0L Turbocharged Inline 4-Cylinder (1998cc)
Valvetrain
DOHC, 4 valves per cylinder, Dual VVT (DVVT)
Material
High-pressure cast aluminum alloy
Fuel System
350bar high-pressure direct injection
Emission Standard
China VI (b) compliant
Peak Torque
390Nm @1900–3300rpm
Structure & Core Components
Cylinder Head Body
  • One-piece aluminum casting with integrated exhaust manifold
  • Optimized coolant jacket with enhanced exhaust-side cooling
  • Side-mounted 350bar GDI injector bores to reduce coking
  • Precision-machined sealing surface for reliable gasket sealing
Valvetrain System
  • High-temperature wear-resistant alloy valves
  • Hardened valve seats and guides
  • Dual overhead camshafts with hydraulic lash adjusters
  • 72° wide-range DVVT phasers for independent timing control
Auxiliary Components
  • Twin-scroll turbocharger interface
  • Integrated oil and water passages
  • Camshaft position sensor port
  • Valve cover with high-performance gasket
  • Spark plug bores with seals
Technical Advantages
Superior Thermal Management
Integrated exhaust manifold and optimized coolant flow for fast warm-up and effective high-load cooling
Enhanced Response
Twin-scroll turbo interface and integrated exhaust for earlier turbo spooling and improved performance
Improved Durability
Lightweight aluminum construction with tight machining tolerances for better NVH and longer service life
High Interchangeability
Compatible with JL486ZQ4 cylinder block and mounting points (verify ECU and turbo compatibility)
Compatible Vehicles
Vehicle Model Engine Year Range
Changan CS75 PLUS 2.0T 2022+
Changan UNI-V 2.0T All years
Changan UNI-K 2.0T All years
Changan CS85 COUPE 2.0T All years
Changan CS95 2.0T All years
Tag:

Cylinder Head Assembly Parts

Engine Head Assembly

Engine Cylinder Head Assembly
