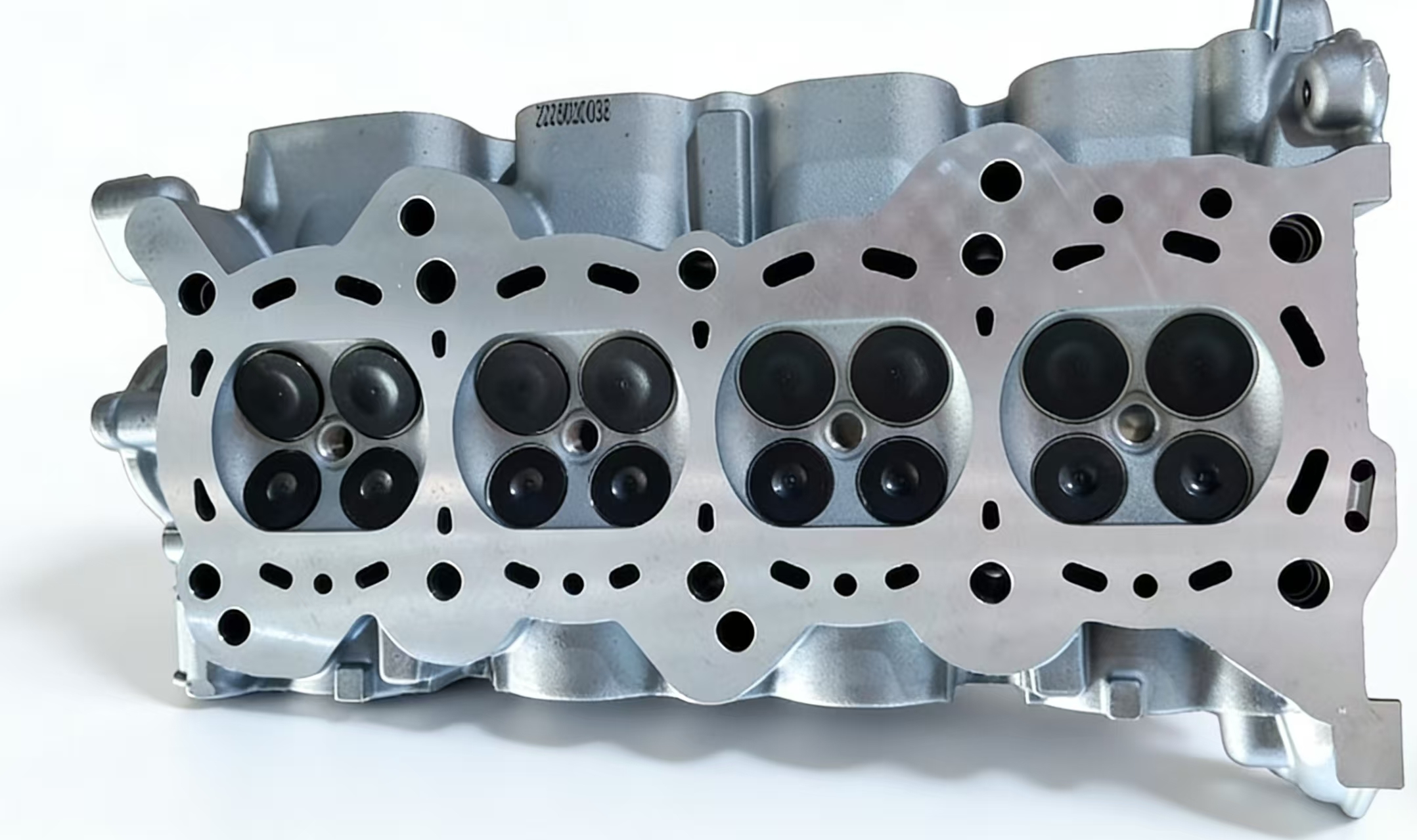

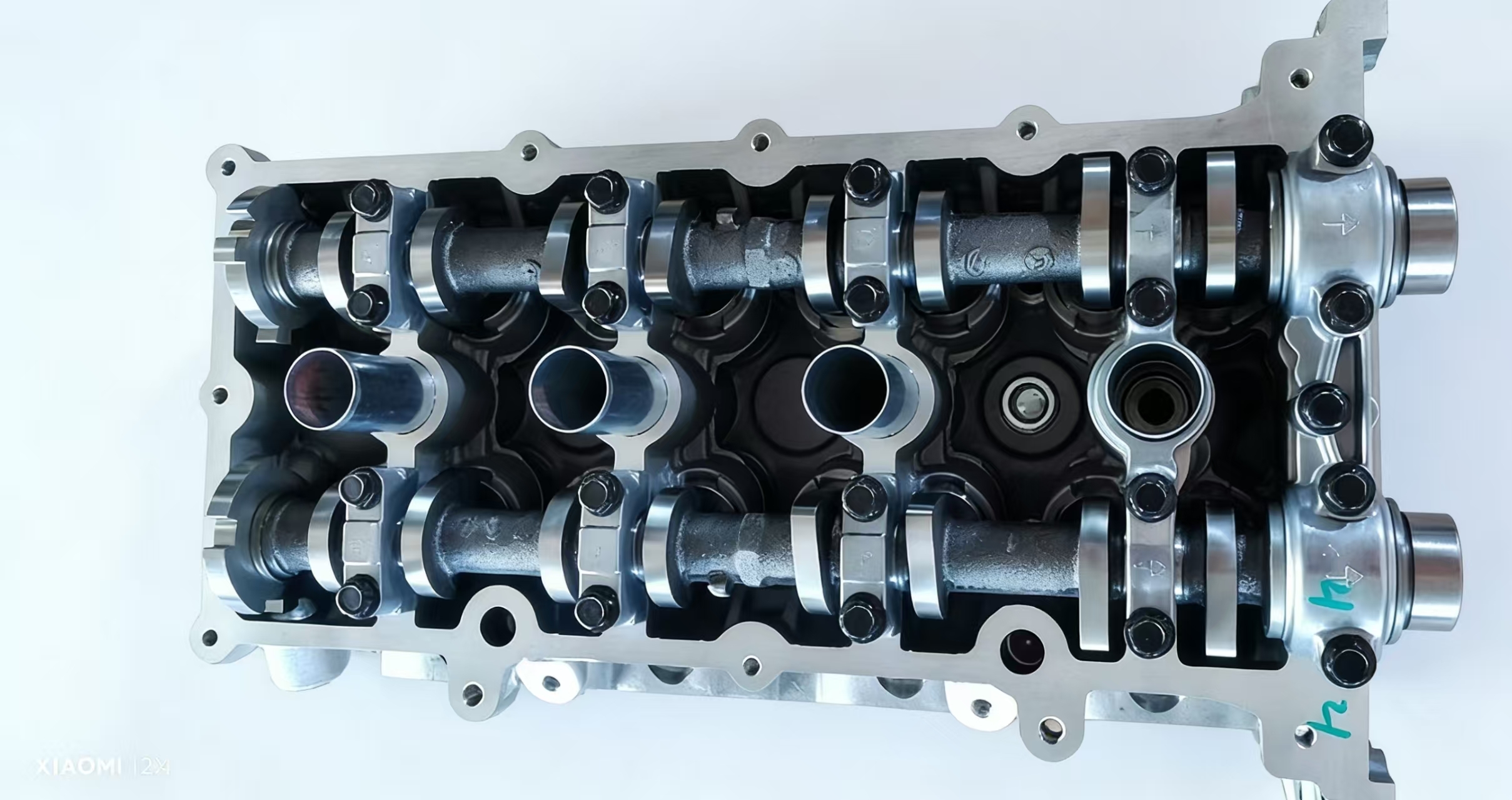

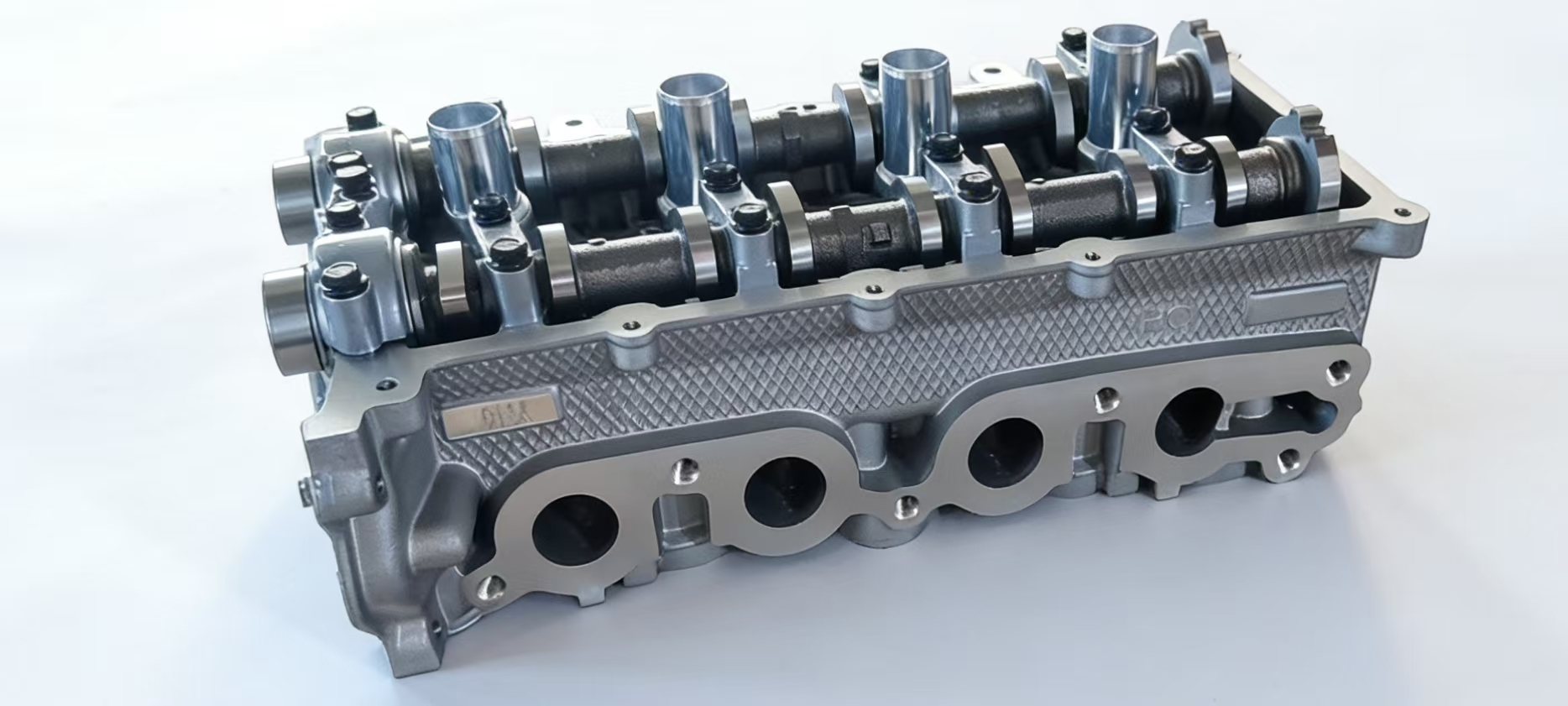

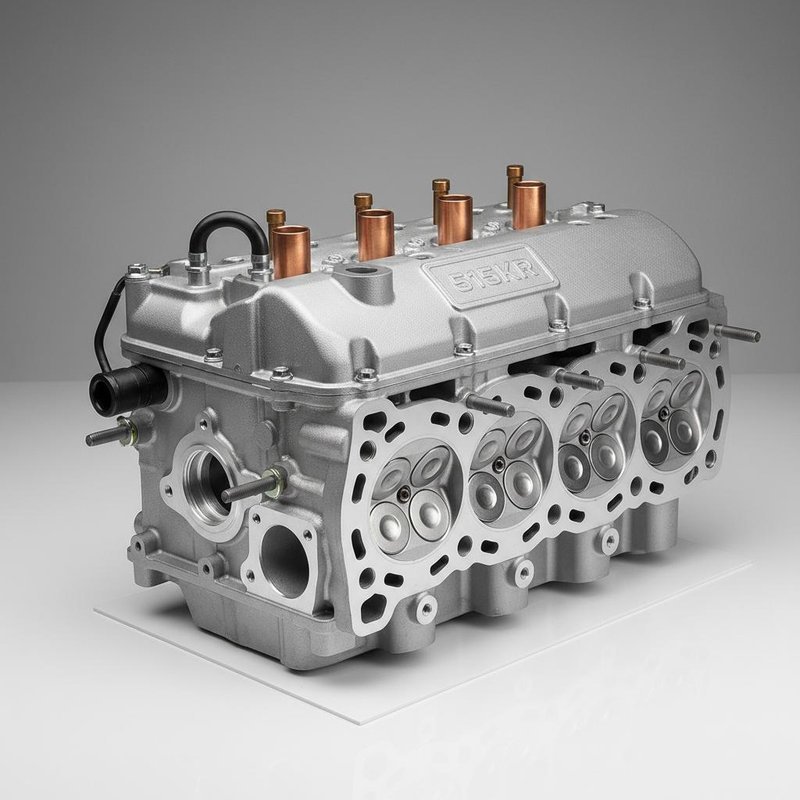

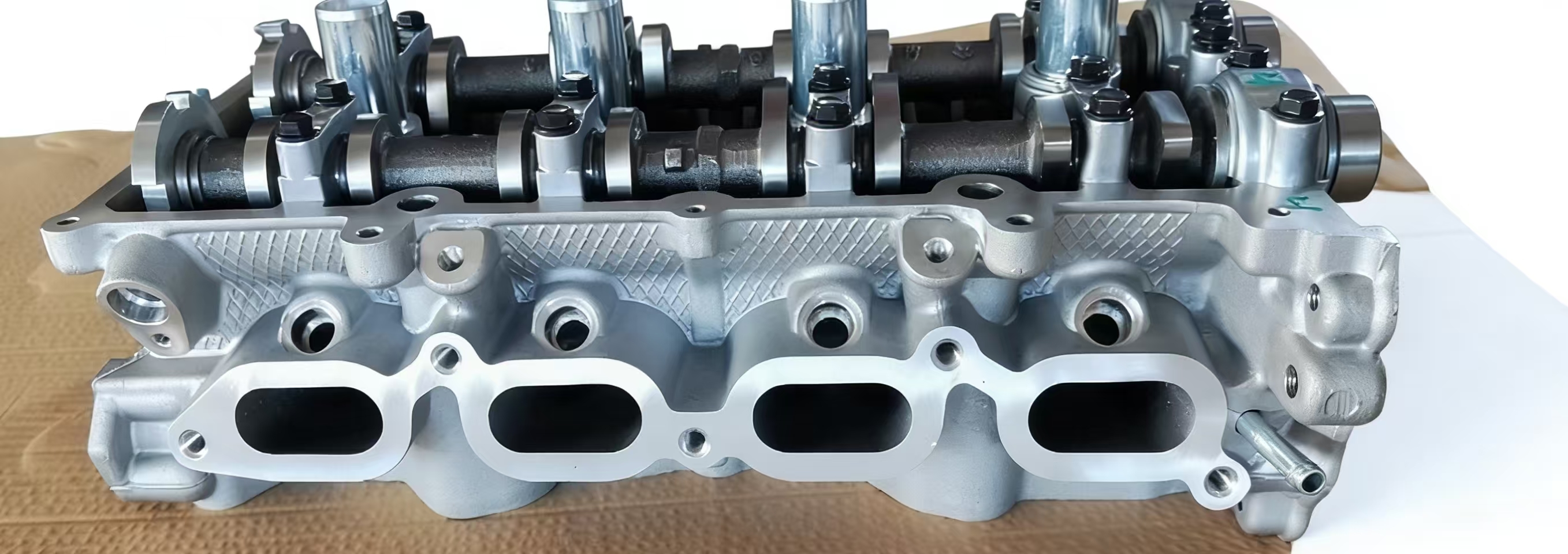

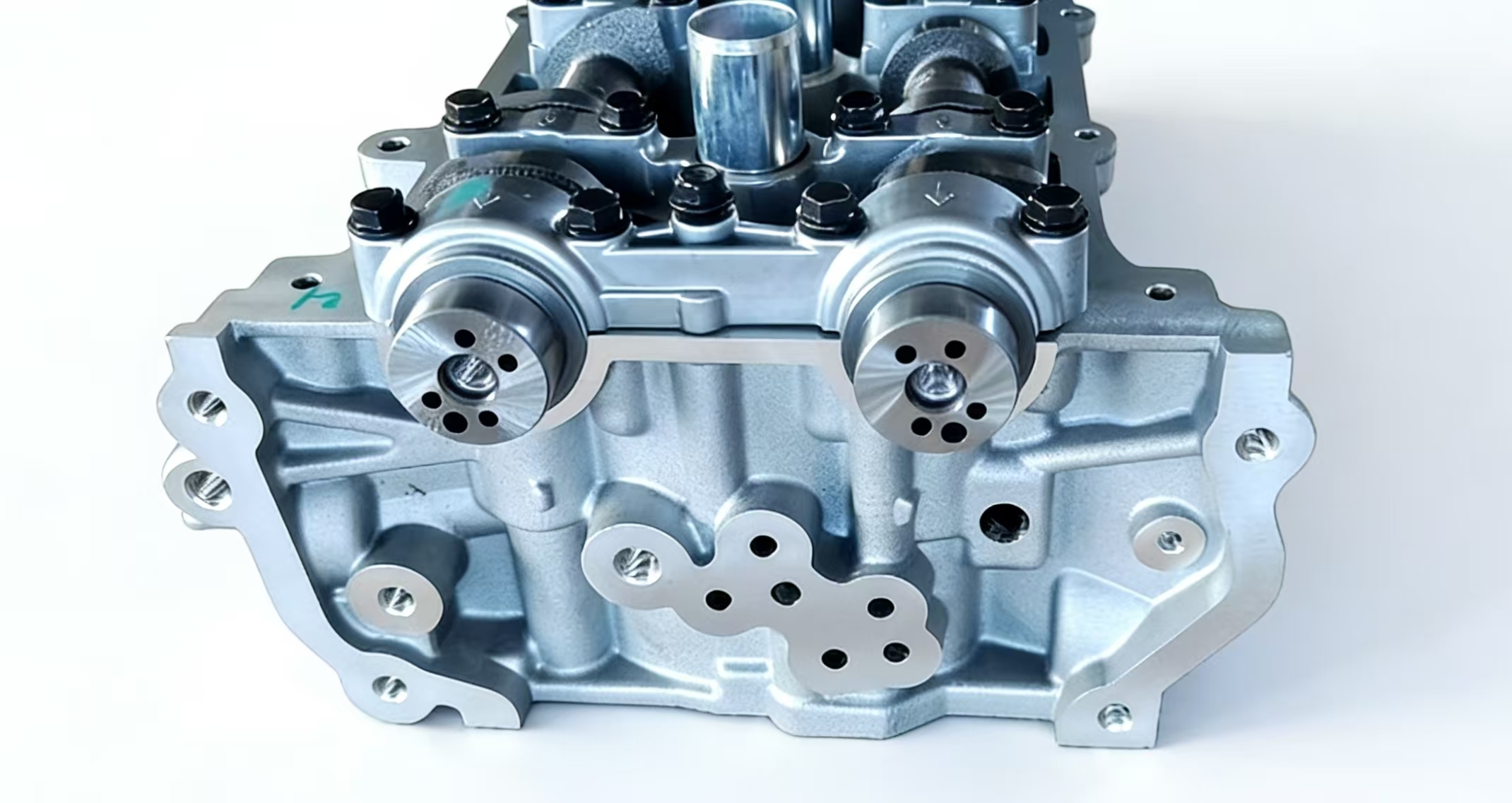

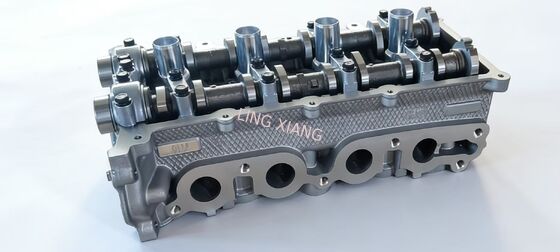

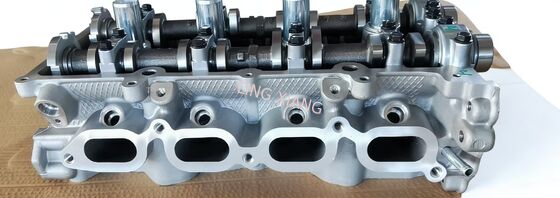

515KR 1.5L Engine Head Assembly Cast Aluminum Alloy DOHC 4 Valves

10
MOQ
1200/ units
Price
515KR 1.5L Engine Head Assembly Cast Aluminum Alloy DOHC 4 Valves
Features Gallery Product Description Chat Now
Features
Specifications
Cylinder Cover: Alufer
Camshaft: Alloy Cast Iron
CYLINDER BLOCK: LRON OR ALUMINUM
CYLINDER HEAD: ALUMINUM OR PLASTIC
Compressionratio: 10.5:1
Transmissioncompatibility: 6-Speed Automatic
Coolingsystem: Liquid Cooled
Aspiration: Naturally Aspirated
Numberofcylinders: 6
Engineblockmaterial: Aluminum
Enginetype: V6
Valvetrain: DOHC
Emissionstandard: Euro 6
Ignitionsystem: Electronic
Fuelinjection: Direct Injection
Fueltype: Gasoline
Horsepower: 280 HP
Torque: 260 Lb-ft
Highlight:

1.5L Engine Head Assembly

,

DOHC 4 valves engine head

,

515KR Engine Head Assembly
Basic Infomation
Place of Origin: CHONGQING
Brand Name: LINXIANG,WULING
Certification: ISO
Model Number: 515KR
Payment & Shipping Terms
Packaging Details: export packaging
Delivery Time: 10DAY
Product Description
515KR Cylinder Head Assembly
High-performance cylinder head assembly designed for 515KR 1.5L engines, featuring advanced valvetrain technology and premium materials for optimal efficiency and durability.
Basic Specifications
  • Engine Application: 515KR 1.5L Inline 4-Cylinder Naturally Aspirated Gasoline Engine
  • Valvetrain: DOHC (Dual Overhead Camshaft), 4 valves per cylinder (2 intake, 2 exhaust), with VVT (Variable Valve Timing)
  • Material: High-pressure cast aluminum alloy, lightweight with excellent thermal conductivity
  • Emission Standard: Compatible with China V / China VI emission regulations, suitable for mainstream EFI systems
Structure & Core Components
Cylinder Head Body
  • One-piece aluminum casting with integrated coolant jacket, intake/exhaust ports, combustion chamber, and spark plug/injector mounts
  • Anti-slip diamond texture on surface for enhanced sealing and structural stability
  • Precisely machined mounting positions for camshaft bearing caps, valve components, and hydraulic lash adjusters
Valve & Drive System
  • Intake/exhaust valves made of wear-resistant alloy, matched with hardened valve seats and guides for extended service life under high temperature
  • Dual overhead camshafts (intake/exhaust) fixed on bearing caps, driving valve operation
  • Equipped with hydraulic lash adjusters to automatically compensate valve clearance, eliminating manual adjustment
Auxiliary Components
  • Integrated VVT cam phaser interface for optimized gas exchange efficiency at different engine speeds
  • Precision-machined sealing surface for reliable sealing of combustion chamber, oil passages, and water passages with cylinder gasket
  • Reserved interfaces for oil/water passages and sensor mounts, compatible with vehicle electronic control system
Technical Advantages
  • Efficient Heat Dissipation: Aluminum alloy + optimized coolant flow design quickly dissipates combustion chamber heat for long-term high-load operation
  • Balanced Power & Fuel Economy: DOHC+4V+VVT structure improves intake efficiency, enhancing power output while reducing fuel consumption
  • Enhanced Reliability: Reinforced valve components and tight machining tolerances reduce NVH and improve overall durability
  • High Interchangeability: Fully compatible with original cylinder block and mounting points, direct replacement for old cylinder head assemblies
