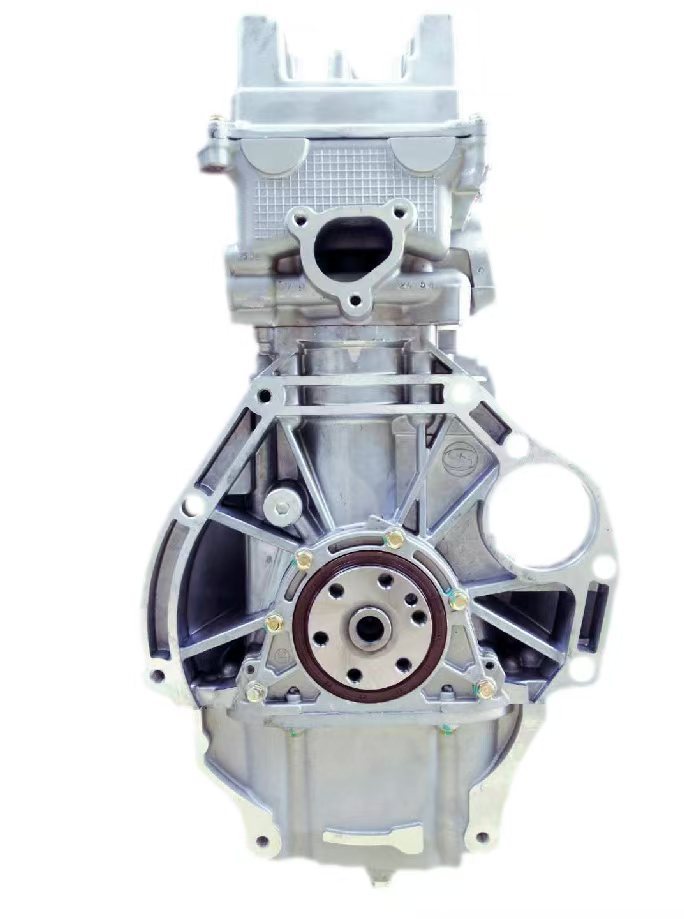

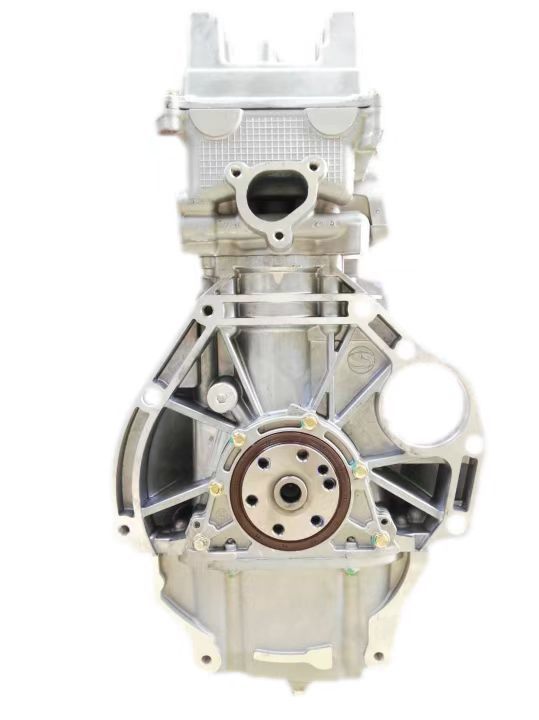

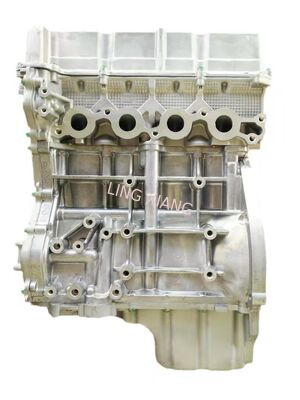

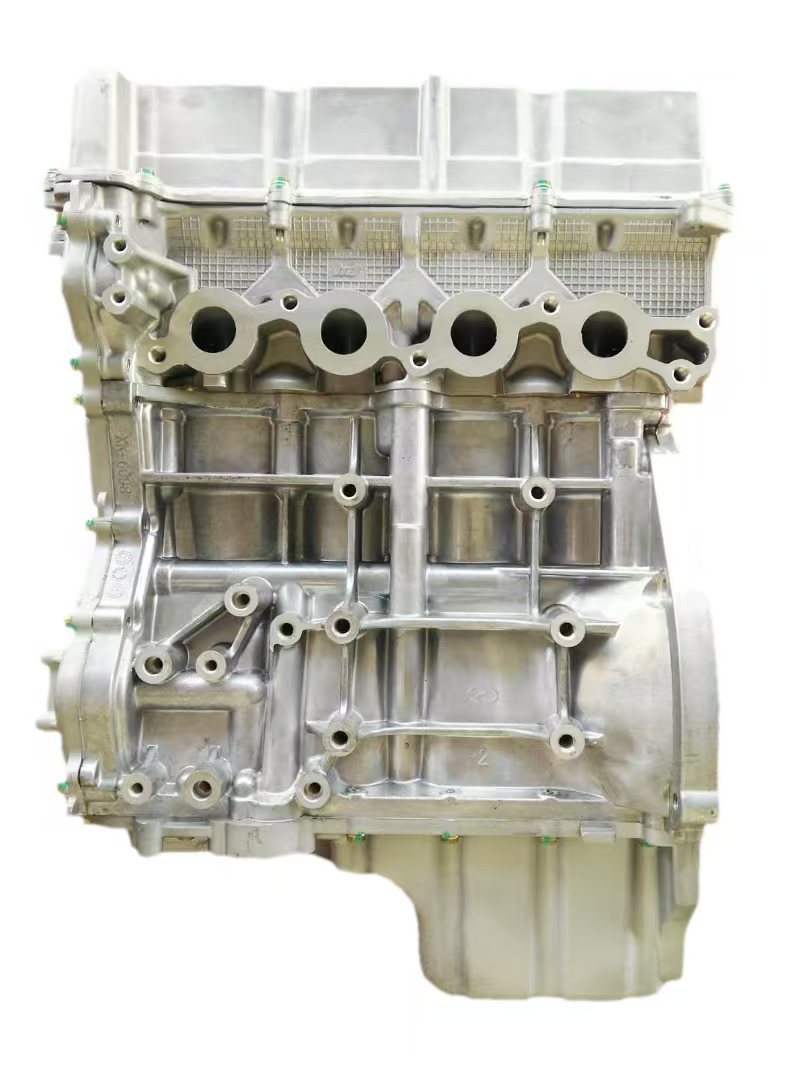

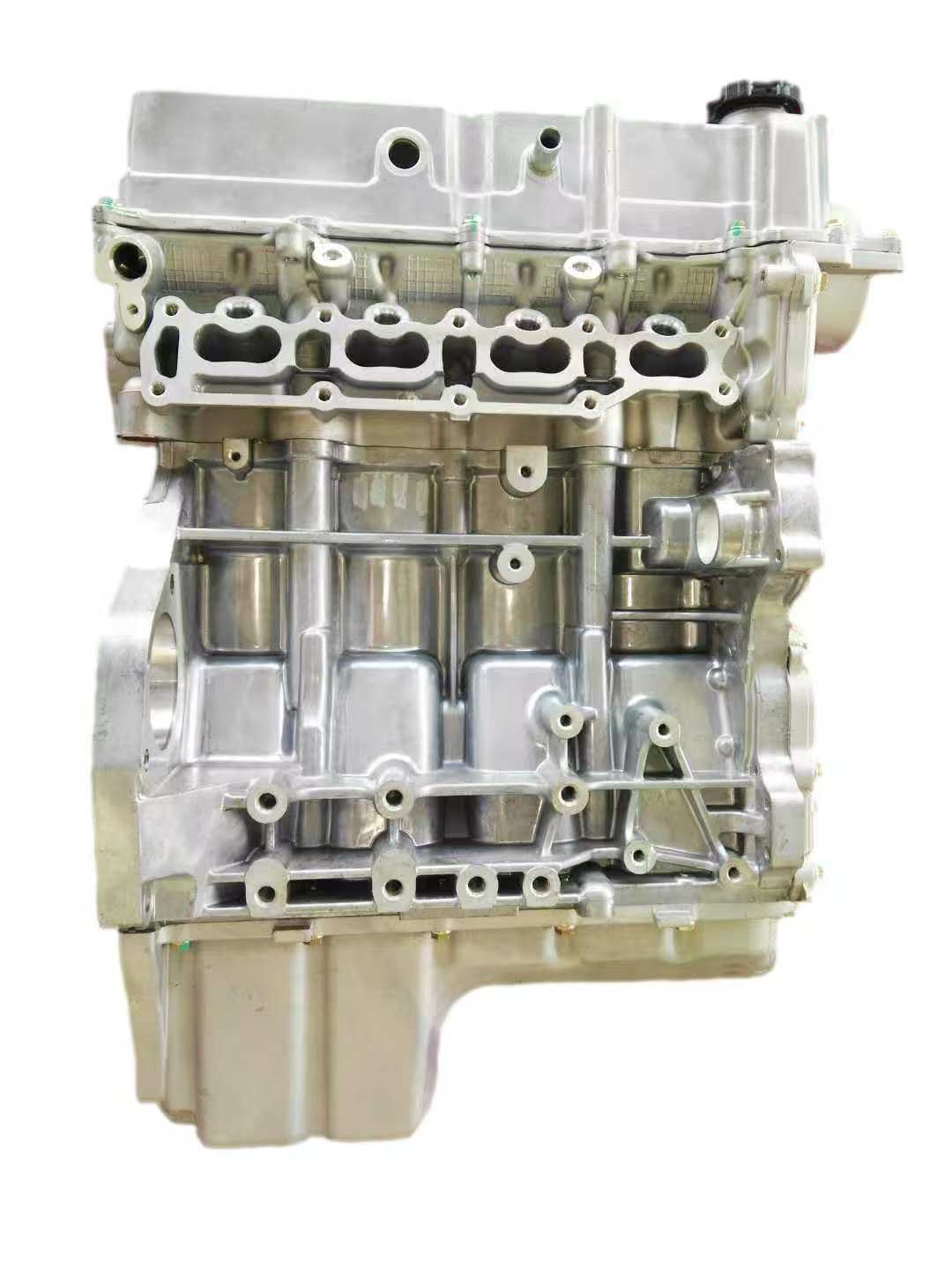

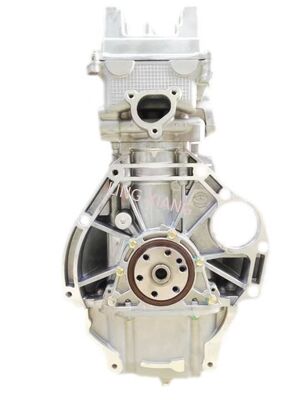

DK13-08 SOHC Gasoline 1.3L Four Cylinder Naturally Aspirated Engine

DK13-08 Gasoline Engine English Description 1. General Introduction DK13-08 is a 1.3L inline four-cylinder naturally aspirated gasoline engine independently developed by DFSK (Dongfeng Xiaokang), widely equipped on DFSK Glory 330/350/360/370, C37 mini vans and small commercial passenger vehicles, complying with Euro IV/Euro V emission standards. It adopts all-aluminum lightweight cylinder block & DOHC 16-valve layout, featuring reliable structure, outstanding fuel economy and low maintenance cost for light commercial vehicle market. 2. Core Technical Parameters

Engine Model DK13-08 Fuel Type 92# Unleaded Gasoline Layout Inline 4-Cylinder, Water-cooled, 4-Stroke Valve Configuration DOHC, 16 Valves (4 valves per cylinder) Displacement 1375cc (1.3L) Bore*Stroke Φ74mm*80mm Compression Ratio 10.1:1 Rated Power 70.5kW / 6000rpm (96PS) Max Torque 131N·m / 2800~3600rpm Emission Standard Euro IV / Euro V Ignition Mode Multi-point EFI Electronic Fuel Injection Main Material Aluminum Alloy Cylinder Block & Cylinder Head 3. Product Feature Description Lightweight Aluminum Design: Full aluminum cylinder block and head effectively reduce engine curb weight, improve vehicle load capacity and fuel efficiency, effectively lower whole vehicle oil consumption during daily transportation. DOHC 16-Valve Technology: Dual overhead camshaft plus 16-valve structure optimizes intake & exhaust efficiency, enhances low-speed torque output and high-speed power performance, suitable for urban frequent start-stop working condition. Precision EFI Control: Matched advanced ECU electronic control multi-point fuel injection system, precisely control fuel injection volume, realize full fuel combustion, cut exhaust pollutant emission and meet strict European emission regulations. Durable & Cost-effective: Mature mass-production design with verified market reliability; spare parts are widely available with affordable replacement cost, ideal for mini passenger car & light cargo vehicle aftermarket replacement and engine overhaul. 4. Applicable Vehicle Range Fit for DFSK Glory 330, Glory 350, Glory 360, Glory 370, DFSK C37, V27 series mini MPV and light commercial vans (2013~2017 factory matching models). 5. Aftermarket Supply Note Available in full complete engine assembly or long block bare engine, with standard wooden case export packaging; factory-tested before shipment, regular warranty: 12~24 months based on purchase agreement.
